Bowers & Wilkins satellite surround sound 5.1 system

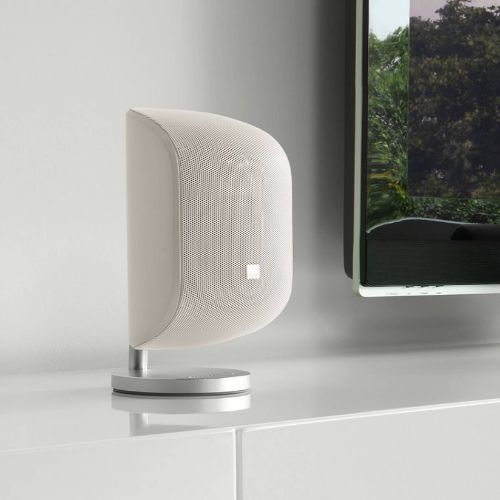

Where versatility and discretion are concerned, M-1 has them in abundance. It’s equally suited to multi-channel or stereo sound, is an outstanding listen with or without a subwoofer, and comes complete with wall-bracket and table stand.
M-1 is equally at home on a shelf or a wall, thanks to its swiveling multi-position foot, or its bespoke stand will bring it up to the perfect listening height. No matter where you position it, though, its sound will draw your attention.
With a choice of matte black or matte white finishes for both the cabinet and the perforated steel grille , M-1 is ready to blend into the background or make a bold statement — the choice is yours. Either way, it makes a sophisticated statement.
The M-1 is just 25cm high, and sits on a versatile and good-looking stand. And our engineers have somehow managed to incorporate Nautilus tube technology for extraordinary scale and fidelity of performance.
If it’s deep, punchy and perfectly controlled bass from a small, unassuming subwoofer you want, don’t look any further. The ASW608 may look neat and unassuming, but it’s got the explosive power and control your favourite soundtracks demand.
Satellite surround sound 5.1 Specifications
Speaker specifications-
Drive units | 1x ø25mm (1in) metal dome high-frequency 1x ø100mm (4in) woven glass fibre cone bass/midrange |
Frequency range | -6 dB at 55Hz and 50kHz |
Frequency response | 64Hz – 23kHz ±3dB on reference axis |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) <1% 120Hz – 30kHz |
Sensitivity | 85dB spl (2.83V, 1m) |
Nominal impedance | 8Ω (minimum 4.0Ω) |
Crossover frequency | 4kHz |
Recommended amplifier power | 20W – 100W into 8Ω on unclipped programme |
Size & weight
Dimensions | Height: 248mm (9.8in) Width: 114mm (4.5in) Depth: 162mm (6.4in) Mounted on table stand |
Net weight | 2.3kg (5lb) |
Subwoofer Specifications
Size & weight
Dimensions | Height: 260mm (10.2in) not including feet or spikes 272mm (10.7in) including feet 288mm (11.3in) including spikes Width: 260mm (10.2in) Depth: 305mm (11.99in) not including grilles 330mm (13in) including grilles and controls |
Net weight | 8.85kg (19.5lb) |
Technical details
Technical features | Volume level – line in Volume level – speaker in Low-pass filter frequency Low-pass filter bypass (line in only) Bass extension Bass roll-off alignment Auto sense on / standby Phase switch |
Description | Active closed-box subwoofer system |
Drive units | ø200mm (8in) paper / Aramid fibre cone long-throw |
Amplifier power output | 200W |
Power consumption | 40W / 0.5W standby |
Input impedance | 33kΩ |
Signal / Noise | >90dB |
Inputs | Stereo line in (RCA Phono) Speaker in (Binding post) 12v trigger (3.5mm jack) |
Finishes
Cabinet finishes | Black White |
Grille finishes | Black Grey |
