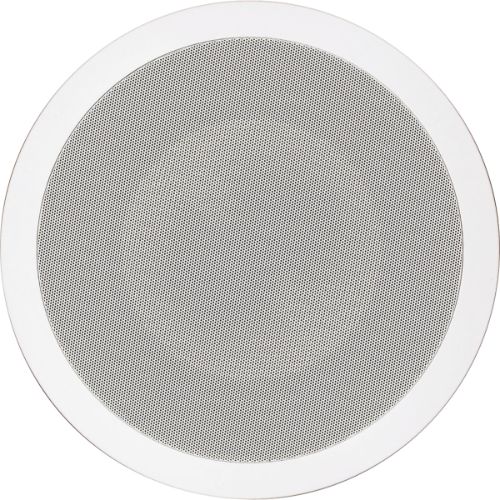

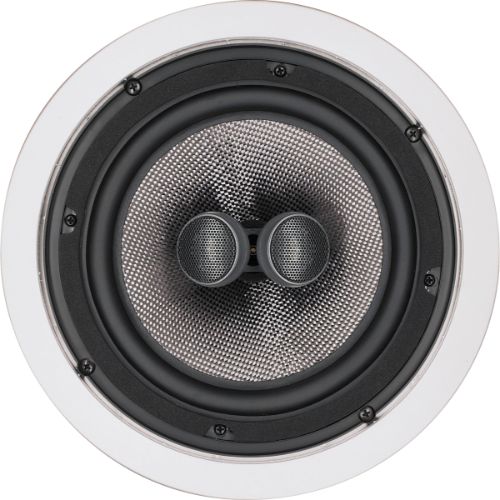

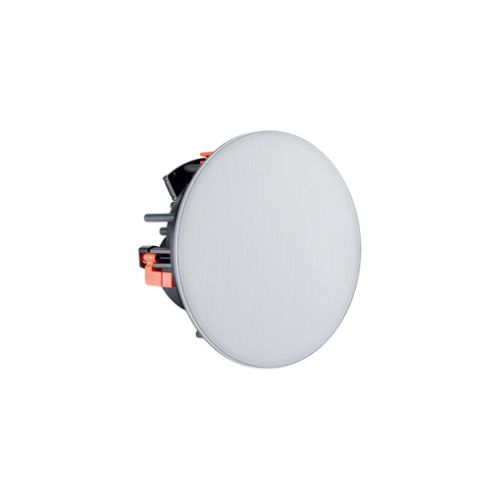

Magnat IC 82 2-Way Recessed Ceiling Speakers

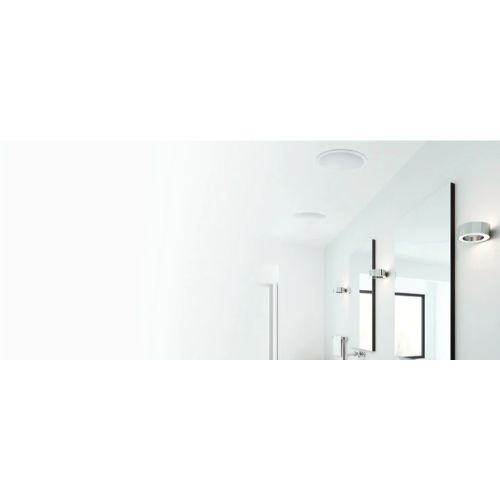

The IC 82 is the larger of two strong-sounding built-in ceiling loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix – which guarantees extremely high stability and a very clear and dynamic sound.
Key Features
- 200 mm carbon/fibreglass woofer for tight bass reproduction
- Multi-directivity circuit for optimum adaptation to room acoustics
- High-quality crossover with phase and amplitude correction
- Two 19 mm aluminium tweeters with neodymium drivers, specially arranged for optimum dispersion characteristics
- Specially developed securing system with clamping mechanism for easy fitting
Highlights
- Multi-Directivity circuit to optimize the speaker to the room
- High-End in-wall/in-ceiling loudspeaker
- Simple mounting with special mechanism
Product Specifications
PRINCIPLE | 2-way in-wall/in-ceiling loudspeaker |
DRIVERS | 200 mm woofer |
2 x 19 mm tweeter | |
POWER HANDLING (RMS/MAX) | 100 / 180 watts |
SENSITIVITY (2.8V/1M) | 91 dB |
IMPEDANCE | 4 – 8 Ohms |
FREQUENCY RESPONSE | 32 – 35000 Hz |
CROSSOVER FREQUENCIES | 3500 Hz |
RECOMMENDED AMPLIFIER OUTPUT | 30 – 180 Watts |
OUTER DIMENSIONS Ø | 272 mm |
MOUNTING DEPTH | 100 mm |
CUTTING OUT Ø | 238 mm |
