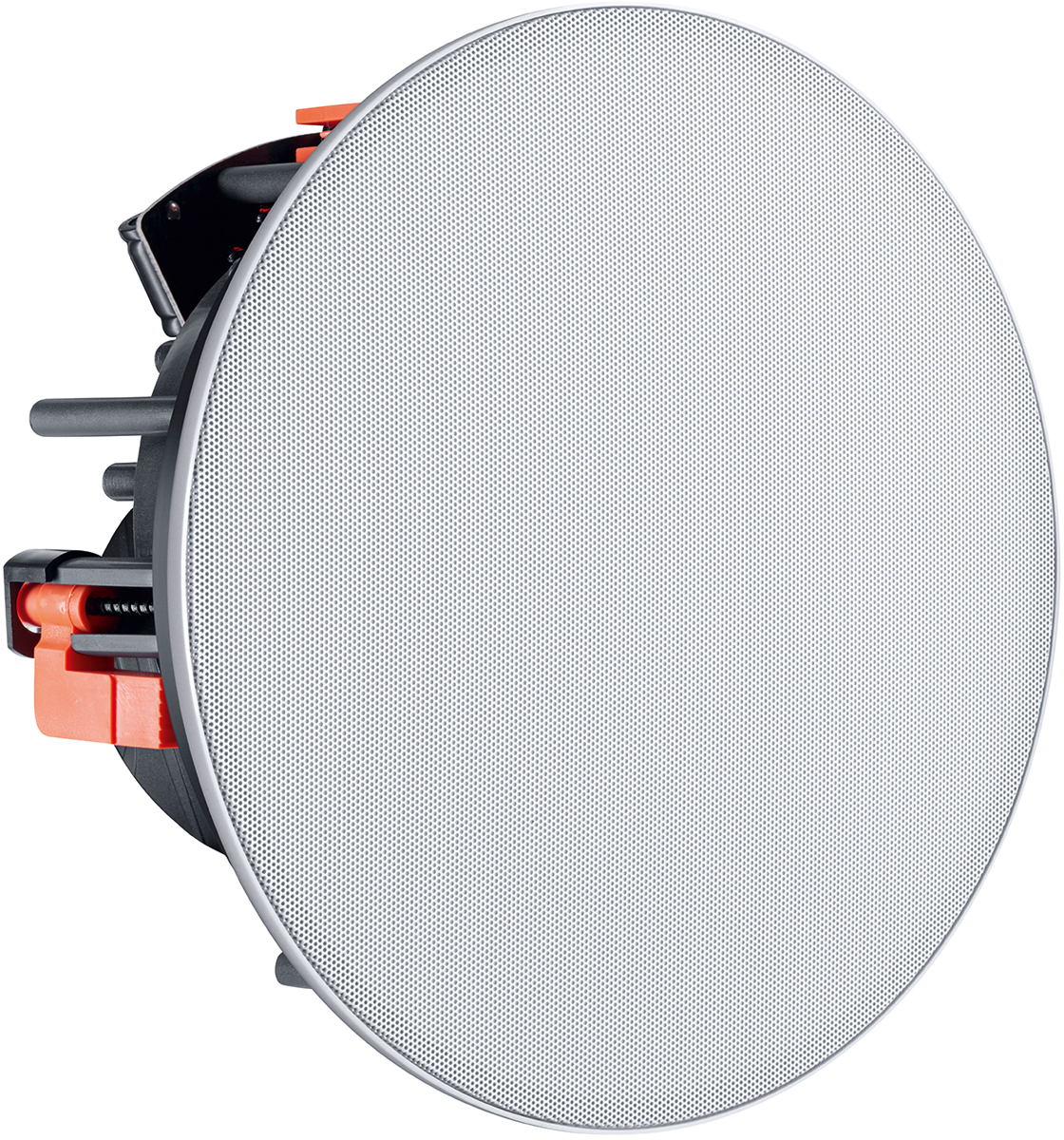

MAGNAT ICT 62 Ceiling speakers
Key Features
- High-end chassis technology with ceramic/aluminum bass-midrange drivers and a coated fabric dome
- High load capacity with compact dimensions
- Uncomplicated installation thanks to a sophisticated mounting system
- Tonal structure perfectly coordinated with the Signature series, therefore can be individually combined
- Angled alignment to the listening position
Highlights
- Klippel®-optimized speaker drivers for high efficiency and maximum level
- Large high-end fabric dome with protective diffusor for excellent dynamics and harmonic coupling to the woofer-midrange
- Woofer-midrange with powerful drive system and 3-layer aluminium/ceramic sandwich cone for deep bass reproduction and highest sound precision
- Designed for installation in drywalls (no housing required) or in closed volumes (30 liters or more)
- Angled speaker unit (15°) allows perfect alignment to the listening area

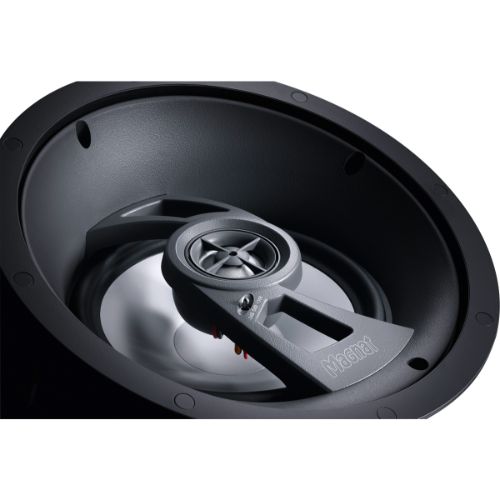

- Tweeter can be pivoted by up to +/-15°
- 4fold clamping mechanism for very easy and robust installation in surfaces of up to 30 mm thicknes
- Removable magnetic metal grill with fine perforations and very slim design for an elegant appearance
- Gold-plated push terminals for cables with cross-sections of up to 6 mm²
- Durable long-throw rubber surrounds for linear operation of the woofer-midrange drivers to handle even large cone excursions
- Woofer-midranges with magnet protection cover to prevent any damage and undesirable background noise

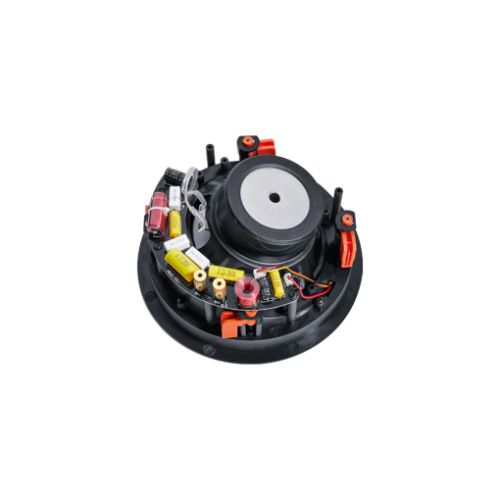

- Elaborate phase-optimized crossover with 3 settings for the tweeter level
Product Specifications
PRINCIPLE- 2-way in-wall/in-ceiling loudspeaker
DRIVERS-
- 1 x 6.5“ woofer-midrange
- 1 x 1” dome tweeter
POWER HANDLING (RMS/MAX.)- 110 / 180 watts
SENSITIVITY (2.8V/1M)- 91 dB
IMPEDANCE- 4 Ohms
FREQUENCY RESPONSE-32 – 28000 Hz
CROSSOVER FREQUENCIES-3.100 Hz
RECOMMENDED AMPLIFIER OUTPUT-20 – 180 Watts
OUTER DIMENSIONS – 238 mm
CUTTING OUT – 206 mm
MOUNTING DEPTH-130 mm
WEIGHT- 1.82 kg
