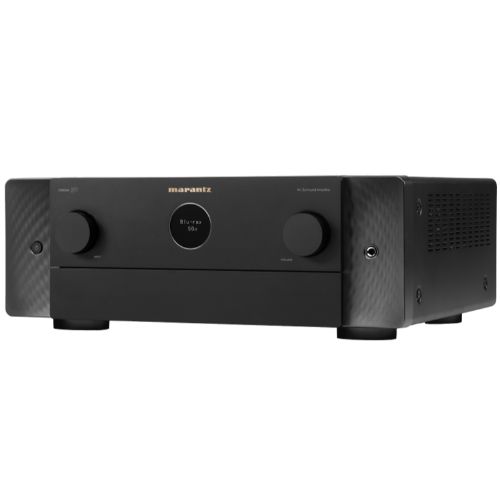

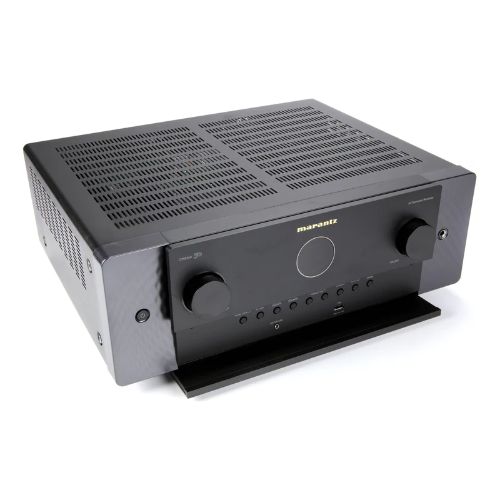

Marantz cinema 50 9.4 channel AV Receiver

The Marantz CINEMA 50 home theater system is the perfect way to enjoy your favorite broadcast and streaming sources with effortless sonic quality and no sacrifices. Dolby Atmos, DTS:X, IMAX Enhanced and Auro 3D, 8K Ultra HD, and HEOS Built-in streaming are all included in the premium 9.4 channel 110-watt amplification. CINEMA50 is a potent AV receiver for extremely high-end home theatre systems. The cinema-series AV-Receiver is the cornerstone of the most demanding home theatres in the world. It is based on decades of rich tradition, created with timeless flair, and engineered for maximum performance.

Key Features

Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.

Technology Leader

CINEMA 50 abounds with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

Exquisite Design

A modern expression of timeless design principles, CINEMA 50 features the iconic Marantz porthole, symmetrical design, and front panel controls elegantly hidden from view.

Believe in Quality

Performance

The Marantz Sound Master meticulously tuned CINEMA 50 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Style

Excellence is heard and seen. CINEMA 50 features architectural design that can be featured or remain discreet in any luxurious environment.

Customizability

Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability allow you to make CINEMA 50 your own.

Effortless

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.



Technical Specifications

Power Amplifier

Number of Powered Channels	9
Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive)	110 W
Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive)	–
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	150 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)	220 W
70% Guarantee	Yes
Discrete Power Amplifier	Yes
Amplifier Topology	Class A/B
Current Feedback Topology	Yes
Bi-Amp Drive	assignable

Multichannel Surround Technologies

DTS	DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby	Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other	IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Multichannel Stereo
Max Number of Processing (Preamp) Channels	11.4

Inputs/Outputs

Composite In / Out	0/0
Component In / Out	0/0
HDMI In / Out	6 / 3
Multi-Room Video Out via HDMI	Yes
Analog In / Fixed Level Out	5 in / 0 out
Phono (MM) In	Yes
Digital In: Optical / Coaxial	2 / 2
Multi-Room Out: analog / digital	1 /0
Multichannel Preamp Out	11.4
Subwoofer Out	4 (independent)
7.1 multichannel input	No
Number of Speaker Terminals	11
Speaker A / B	assignable
Multi-Room Speaker Terminal	assignable
Front Inputs	USB-A
USB Audio / Made for iPod / Made for iPhone	Yes / No / No
USB Audio	Yes
AM/FM Tuner	Yes

HDMI

Total HDMI Inputs / No. Support 8K	6 / 6
HDCP2.3 support	Yes
HDMI Outputs: Main / Zone	2 / 1
Analog to HDMI Video Conversion	No
HDMI Upscaling	1080P/4K to 8K
Max resolution @ framerate	8K/60Hz, 4K/120Hz
Audio Return Channel	ARC, eARC
Video Dynamic Range	HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming	Yes
Variable Refresh Rate / Quick Frame Transport	Yes / Yes
HDMI Pass-Through in Standby Mode	Yes
CEC	Yes
DSD Audio over HDMI	Yes
Auto LipSync	Yes

Performance Technologies

Copper Plated Chassis	No
Toroidal Power Supply Transformer	No
Hyper Dynamic Amplifier Modules (HDAM) (List version)	Yes
Pure Direct Mode	Yes
Gold Plated RCA Terminals	Yes
Clock Jitter Reducer	Yes

Acoustic / Room Correction

Audyssey	MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume	Yes / Yes
Audyssey LFC	Yes / Yes
Dirac Live Upgradability	Yes
Variable Cross Over	Yes
Optimized Bass Redirection	Yes
Bass Sync	Yes

Music File Support

Lossy Formats	MP3 / WMA / AAC
Lossless formats	FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio	2.8 MHz / 5.6MHz
Gapless Playback	FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2	Yes
Network Audio Sharing	Yes

Streaming Services

HEOS Multi-room and Streaming	Yes
AirPlay Audio Streaming	AirPlay 2
Internet Radio	TuneIn
Spotify*	Spotify Connect
Pandora	Yes
SiriusXM	Yes
Other Streaming Services *	Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
Roon tested	Yes

Network Connectivity

Ethernet Ports	Yes
Wi-Fi (include version / band)	Yes
Bluetooth (Include version)	Yes
Bluetooth Re-transmit for Bluetooth headphones	Yes

Smart Home Integration And Control

Voice Assistant Compatibility	Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android)	Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated	Yes
HEOS Link Compatibility: IR/ IP	Yes / Yes
Multi-Room zones	2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog	2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout	Yes / Yes
Zone HDMI Output from HDMI Source	Yes
Control Connectivity	IP Control / RS232 Control / Web Control / App Control
IR Flasher In	Yes
Marantz Remote Bus	Yes
DC Trigger Output	1
HDMI Diagnostics	Yes

Others

Front Display	port hole OLED
GUI Languages	3
Setup Assistant	Yes
Smart Select on Remote	Yes
Firmware Update by Network / USB	Yes / Yes
ECO Mode	Yes
Auto Power off	Yes
Sleep Timer	Yes

General

Available Colors	Black
Metal Front Panel	Yes
System Remote Control	RC049SR
Power Consumption in W	680
Power Consumption No-Sound (ECO on/off) in W	60 / 100
Standby Consumption in W	0.2
CEC Standby Consumption in W	0.5
Network Standby Consumption in W	Less than 2.0
Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches	17.4 x 15.9 x 6.5 17.4 x 15.9 x 9.3 17.4 x 15.4 x 6.5
Weight in lbs.	29.8
