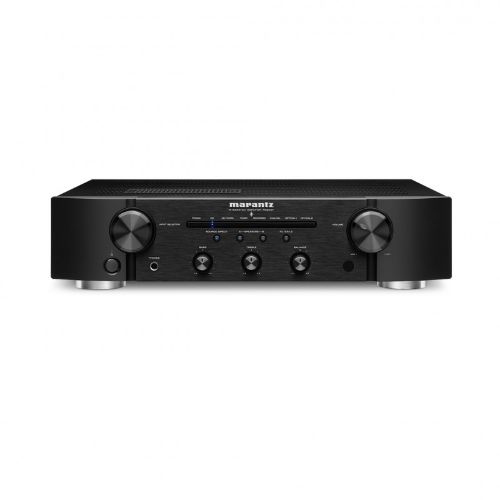

Marantz PM6007 Integrated Amplifier
Current Feedback Amplifier
The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007’s amplifier holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.
The PM6007 features a new Hi-Res D/A conversion. It is equipped with a reference class D/A converter, which provides up to 192-kHz/24-bit resolution for optimum fidelity with your Hi-Res audio file types.
The power supply supports high current, high speed Schottky Barrier Diodes and high current storage capacitors fed by a Toroidal Transformer that together provide wide dynamic range and low impedance drive capability.
Product Specifications-
| Channels | 2 |
| Current Feedback Topology | Yes |
| Full balanced circuitry architecture | No |
| Double Mono Power Amp construction | No |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | Yes / No / No |
| Digital in: USB-B / optical / coaxial / USB-A | No / 2 / 1 / No |
| Sample Rate digital In | 192 kHz / 24-bit |
| USB-A: DSD / WAV / FLAC / AIFF / ALAC | No |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | No |
| USB-B PCM sample rate | No |
| Asynchronous mode rear USB | No |
| Bit-perfect transmission | No |
| Ground isolator for DAC Mode operation | No |
| Tuner: DAB / DAB+ / FM (RDS) | No |
| Bluetooth / aptX / NFC | No |
| Streaming audio from PC | No |
| Wi-Fi / Wired LAN | No |
| Internet radio | No |
| AirPlay 2 | No |
| Roon Tested | No |
| Spotify Connect* / Tidal* / Deezer* / others * | No |
| Amazon Prime Music* / Pandora* | No |
| HEOS Multiroom and Streaming | No |
| Voice Control – Works with Amazon Alexa | No |
| Voice Control – Google Assist / Apple Siri | No |
| Voice Control – Microphone built-in | No |
| DSD-Audio network streaming | No |
| Lossy formats: MP3 / WMA / AAC | No |
| Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF | No |
| Gapless Playback | No |
| Remote APP: iDevice / Android | No |
| Analog Mode | No |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | Yes / No |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric PCB Layout | No |
| Aluminium extrusion heat sink | Yes |
| Copper Plated Chassis | No |
| Tri Tone Control (Bass / Mid / Treble) | No |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
| Power Output (8 / 4 Ohm RMS) | 45 W / 60 W |
| Frequency response | 10 Hz – 70 kHz |
| Total Harmonic Distortion | 0.08% |
| Damping Factor | 100 |
| Input Sensitivity: MM | 2.2 mV / 47 kOhm |
| Input Sensitivity: MC | No |
| Signal to Noise Ratio: MM/MC | 83 dB / No |
| Input Sensitivity: High level | 200 mV / 20 kOhm |
| Input Sensitivity: Balanced High level | No |
| Signal to Noise Ratio: High level | 102dB(2V input) |
| Input Sensitivity: Power Amp Direct IN | No |
| Signal to Noise Ratio: Power Amp Direct IN | No |
| Available Colors: Gold / Silver / Black / Silver-Gold | No / No / Yes / Yes |
| Metal Front Panel | Yes |
| Power Consumption in W | 155 |
| Standby Consumption in W | 0.3 |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC004MCD |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in mm | 440 x 370 x 105 |
| Weight in kg | 7.6 |
| Carton Maximum Dimensions (W x D x H) in mm | 517 x 189 x 468 |
| Carton Weight (inc. product) in kg | 9.7 |
