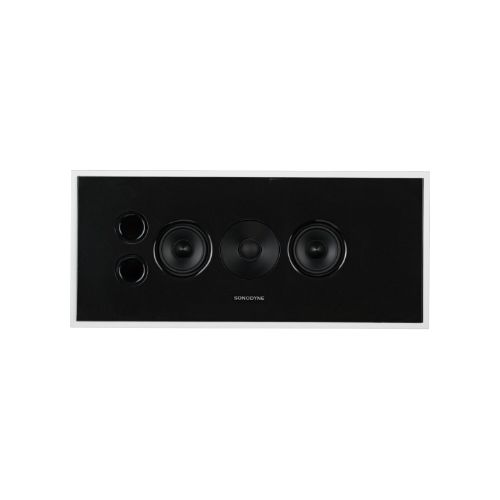

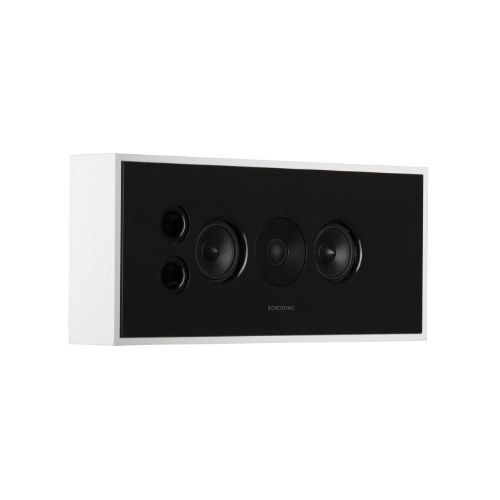

Sonodyne IWO621 On/In Wall Center Channel Speaker





Technical Specifications

System Description: 2-way, MTM, bass-reflex, on-wall/in-wall center speaker

Enclosure: MDF

Transducer Complements:

• HF: 1-inch dome tweeter
• LF: 2 x 3-inch woofer, 2 x 3-inch passive radiators

Recommended Amplifier Power: 60 ~ 100W

Nominal Impedance: 8 Ohm

Sensitivity (1W 1M): 82dB

Frequency Response:

• 75Hz ~ 20kHz (-3dB on axis)
• Frequency Extension: 65Hz ~ 22kHz (-10dB)

Crossover Frequency: 1.6kHz

General:

Input: Gold plated binding post

Finish: Color options: semi-gloss white/black

Dimensions (WxHxD): 500 x 220 x 98

Net Weight: 4.9kg

Mounting Options: In-wall or on-wall

Accessories: IWO WB 63 (In-wall bracket)
